Sheet & Plates

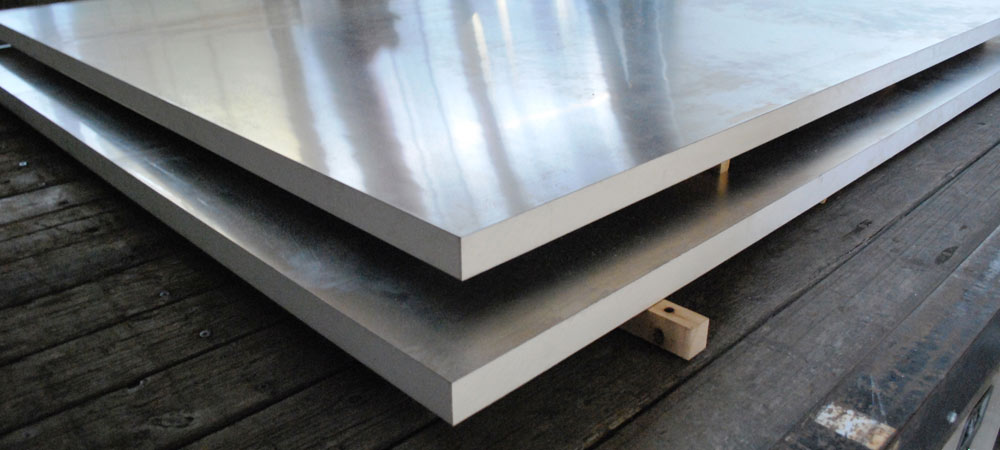

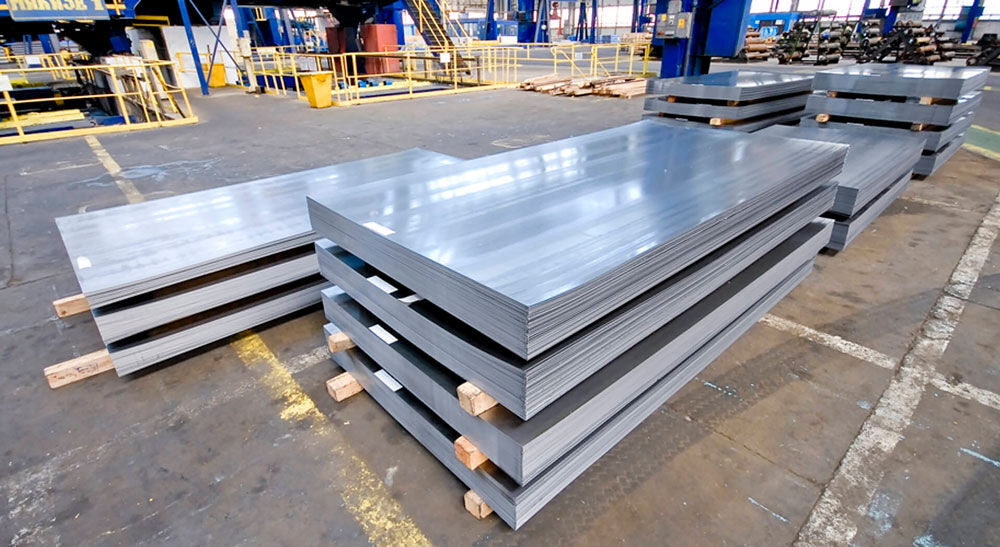

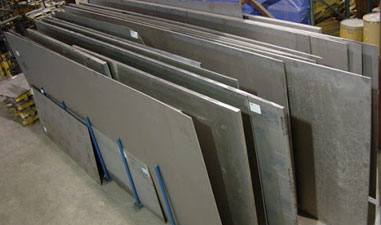

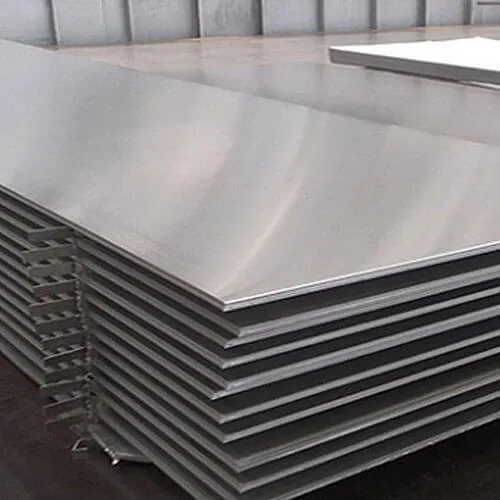

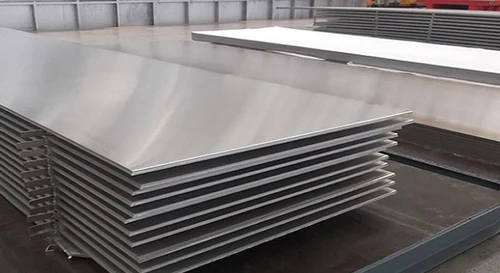

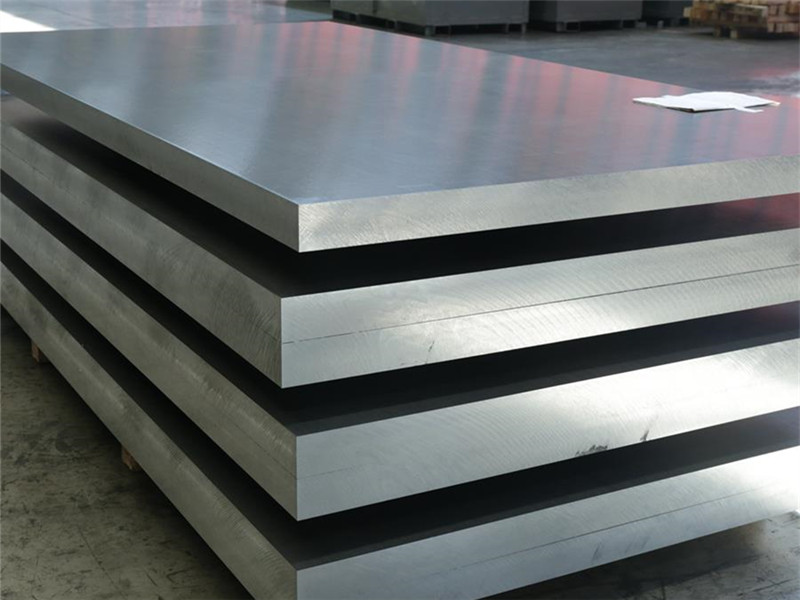

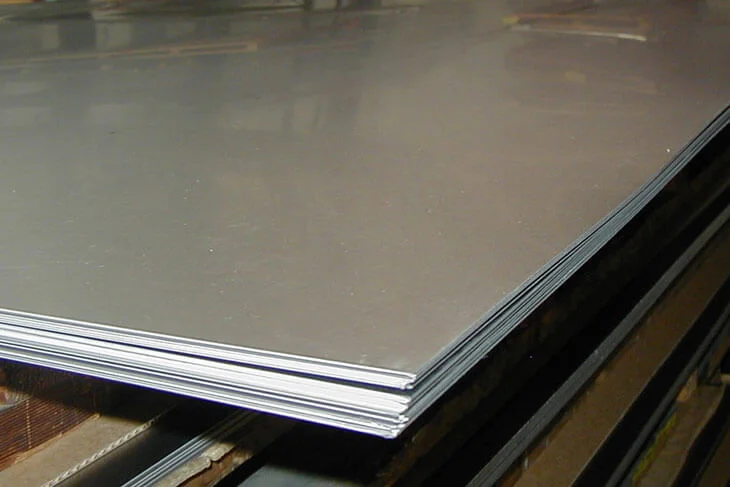

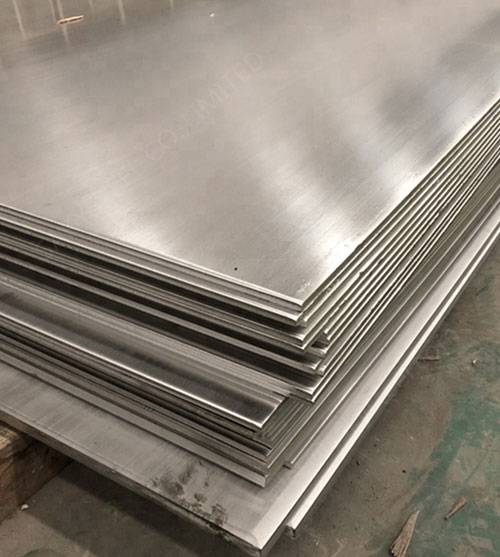

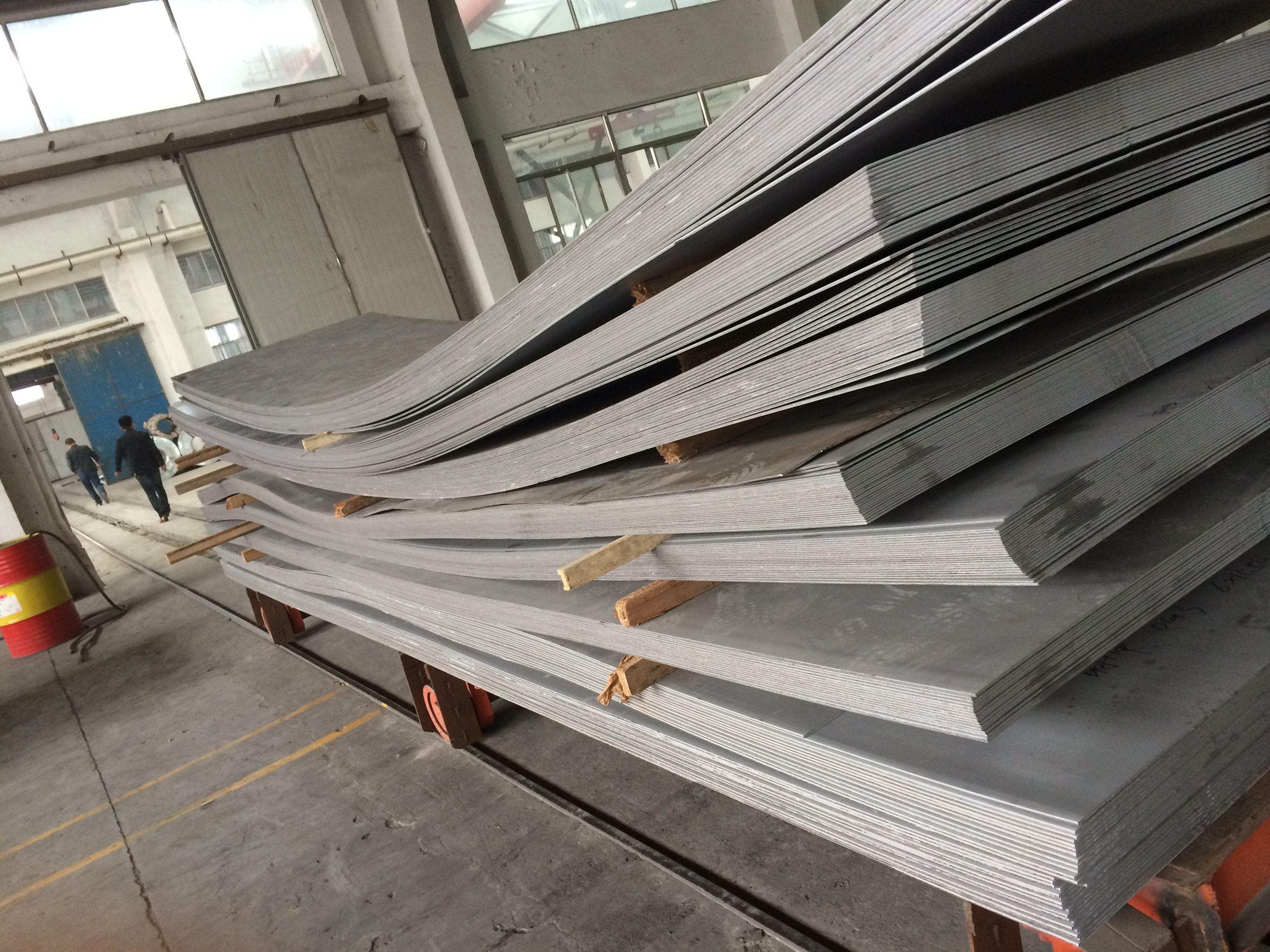

Sheet Plate
We offer wide variety of industrial steel sheets, industrial steel plates, industrial stainless steel sheets, industrial stainless steel plates, which are fabricated from finest quality of raw materials. Manufactured as per the international quality and safety standards, we offer these products in different dimensions and at highly competitive prices. These products are mostly applied in construction and engineering industry. User Industries: Chemicals, Fats, & Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Petrochemicals, Oil & Natural Gas Organization in terms of the specific materials, Technology, Finance & Personal.
| Sheets & Plates Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Sheets & Plates Size Range | Cold rolled ASME SA240 Grade Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade Stainless Steel Sheet 3.0–10.0 mm |
| Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SA240 SS Strips EN 10088 SA -240-Strips |
| Finish of Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
| Surface Finish | Definition | Application | |
|---|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. | |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. | |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. | |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. | |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. | |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
Stainless Steel
|
ASTM A240, TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 409, 410, 420, 430, 446, 904L, 202 |
|---|---|
Titanum
|
ASTM B265 Gr. - 1, 2, 3, 5 (6AL - 4V), 7,9,11,12,23 (6AL - 4V ELI) |
High Nickel Alloys
|
Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy-20 & Cupro Nickel |
Duplex
|
ASTM A815 / UNS S31803 & S32205 (2205) |
Super Duplex
|
ASTM A815 / UNS S32750 (2507) & S32760. |
Other
|
CRCA, Spring Steel, Silver Steel & Hardox |
Finish
|
2B, 2D, HRAP, CR, BA (MATT NO 4 & NO 8), Plastic Coated |
Hardness
|
Soft, Hard, Half Hard, Quarter Hard, Spring Hard. |
Stainless & Duplex Steel
RANGE: 0.1 mm to 100 mm thick upto 2500 mm width & upto 8000 mm length available with NACE MR 01-75s.
Stainless Steel: ASTM / ASME SA 240 202, 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 317L , 321 , 321H , 347 , 347 H , 409 , 410 , 410S , 430
Duplex Steel: ASTM / ASME SA 240 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760.
Nickel Alloy
RANGE: 5 mm to 100 mm thick in upto 2500 mm width & upto 6000 length available with NACE MR 01-75s.
Nickel Alloy
ASTM / ASME SB 162 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 )
ASTM / ASME SB 127UNS 4400 (MONEL 400 )
ASTM / ASME SB 424 UNS 8825 (INCONEL 825)
ASTM / ASME SB 443 UNS 6625 (INCONEL 625)
ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 )
ASTM / ASME SB 462 UNS 8020 ( ALLOY 20 / 20 CB 3 )
Hastelloy
Grades: Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000
Form:- Hastelloy Sheet
- Hastelloy Coil
- Hastelloy Strips
- Hastelloy Plates
- Hastelloy Circle
- Hastelloy Ring
Inconel
Grades: Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Standard: ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443
Incoloy
Grades: Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS
Type: Seamless / Erw / Welded/ Fabricated
Standard: ASTM B407, ASTM B829, ASTM B514, ASTM B775, ASTM B515, ASTM B751
- Petrochemicals Plants
- Oil Refineries
- Sugar Mills
- Fertilizers Plants
- Chemical Plants
- Pharmaceuticals
- Textile Machinery
Monel
Grades: Monel 400, Monel k500
Type: Seamless / Erw / Welded/ Fabricated
Form: Round, Square, Rectangular, Hydraulic etc.
Length: Single Random, Double Random & Cut Length
End: Plain End, Beveled End, Threaded
Titanium
Sheet and Plates Specifications
1) Hot and coll rolled, Gr1~Gr23
2) Thickness:0.3mm - 60mm
3) Length:6000mm
4) ASTM B265,ASTM 4911,F67,F136
Material :titanium and titanium alloys
Pure Titanium Grade : GR1, GR2, GR3, GR4
Titanium Alloy Grade : GR5 (6% Al, 4%V)
GR6 (5% AL, 2.5%Sn)
Gr.7 (Titanium + Pd)
Gr.9 (3% Al, 2.5%V)
Gr.10 (11.5%Mo, 6% Zr, 4.5% Sn)
Gr.11 (Titanium + Pd)
Gr.12 (0.3% Mo, 0.8% Ni)
| Specification | Product Form |
| ASTM B265(Gr2 | Sheet,Strip and Plate |
| ASTM B338 | Tube,Seamless and Welded |
| ASTM B348(Gr2) | Bars and Billets |
| ASTM B861 | Seamless Pipe |
| ASTM B863 | Wire |
| ASTM F67(Gr2) | Unalloyed Titanium for Surgical Implants |
Tantalum
Grade: RO5200, Ro5400,RO5252,RO5255
Standard :ASTM B708-98
Size:T0.1-10.0mm
We are factory specializing in the manufacture and export Tantalum and Niobium prodcut for more than ten years,Including foil tube ,rod,wire,sheet,plate, ,rod,strip,target and so on We can supply the best quallity and low price. Tantalum sheets, Tantalum- tungsten alloy sheets(Ta2.5W, Ta10W)
Purity : 99.95%min or 99.99%min conformity with ASTM B 708 98
| Thickness (mm) | Width (mm) | Length (mm | |
| Foil | 0.03-0.09 | 30-600 | 100 |
| Sheet | 0.1-0.5 | 30- 609.6 | 30-1000 |
| Board | 0.5-10 | 50-1000 | 50-2000 |
